Metal Stud Framing & Drywall in Milwaukee, WI — Commercial Steel Framing and Boarding
Steel stud partitions framed to the assembly they have to satisfy across Milwaukee and its surrounding suburbs, anchored to whatever the building actually offers rather than to a modern slab.
Metal Stud Framing & Drywall in Milwaukee, WI
Milwaukee Elite Drywall is your local resource for metal stud framing and drywall throughout Milwaukee and its surrounding suburbs. We work with experienced commercial framers who match the anchoring, gauge and detailing to the building in front of them.
Steel is the default for commercial interior partitions, and almost everything that decides whether one performs is settled before a sheet of board goes up. Steel does not warp, shrink or twist, it will not burn, and it is what the listed assemblies behind most rated commercial walls actually specify. What it will not do is compensate for being specified or fixed wrong.
In Milwaukee the specification question that gets underestimated is anchoring. A modern building gives you a flat concrete slab and a predictable deck, and track fasteners are close to a routine decision. A converted industrial or pre-war building gives you something else entirely: an old concrete floor with unknown reinforcement, a timber deck overhead, structural masonry on the perimeter, and floors that are visibly out of level across the length of a partition. Every one of those changes what fastener holds the track, how the head of wall gets detailed, and how the studs get cut.
The other two recurring errors are the same everywhere and just as costly. Gauge chosen from the pallet rather than from what the wall carries, and blocking left out because nobody asked what would eventually hang there. Both are nearly free to get right at framing and expensive in every direction afterward.
What’s Included in a Milwaukee Metal Stud Framing & Drywall Quote
- Substrate identified at floor, deck and perimeter before fastener selection
- Track anchored with fasteners matched to what they are actually going into
- Head-of-wall detail chosen for the structure above, including timber decks
- Out-of-level floors absorbed in the layout rather than passed up the wall
- Base metal thickness confirmed in mils rather than accepted on the gauge label
- Studs seated fully in track, spaced to the assembly and set plumb
- Blocking installed against a written list of what will be mounted later
- Board hung and fastened to the assembly's pattern, then finished to the specified level
Metal Stud Framing & Drywall in Milwaukee, WI
Commercial Metal Stud Framing
Steel framing for commercial interiors, the default here and the required construction for most listed rated assemblies. Steel is dimensionally stable, so it does not shrink or warp and pull joints apart the way wood can, and it is non-combustible, which matters directly where a rating is involved. Every stud is straight, which removes the plane problems a bowed wood stud creates. What it demands in return is that the specification be followed, because gauge, spacing and head-of-wall detailing are the assembly rather than preferences within it.
Interior Metal Framing
The non-structural partitions making up most of a commercial interior, typically 25 gauge at around 18 mils, spaced to whatever the assembly requires. These walls carry their own weight and the board and nothing else, which is entirely correct where nothing hangs on them. The failure comes from using them where something does — a display bracket, a monitor, a cabinet run — because steel studs are strong along their axis but thin, and anchors into 25 gauge steel loosen under sustained load until the weight ends up on the board.
Metal Stud Partition Walls
Partitions built to satisfy a specific requirement rather than just to divide space: a fire rating, an acoustic separation, or a tenancy line. Rated walls specify stud gauge, spacing, board type, layer count, fastener pattern and termination, and the rating belongs to that tested assembly rather than to the board alone. Acoustic walls add resilient channel, attenuation and careful sealing at perimeters and penetrations — and a well-built acoustic wall with an unsealed gap at the track performs like a wall half its specification.
Metal Framing for Tenant Build-Outs
Framing inside leased space, where the constraints come from the work letter and the lease date rather than from the trade. Demising walls run to the underside of the deck and carry a rating; interior partitions are a judgment call about acoustics against cost. Blocking goes in against the tenant's actual list of wall-mounted items. In a converted building there is an extra step at every junction, because a partition meeting timber, masonry or an uneven floor is a detail to be resolved rather than a repetition to be run.
Drywall Installation Over Metal Stud Framing
Boarding steel framing, which differs from wood in ways that show if ignored. Screws have to be driven at the right speed to bite the steel without stripping it or breaking the paper face, and a screw that spins in the stud has no holding power regardless of how flush it sits. Sheets are hung so joints stagger and fall away from opening corners, and panels run in the direction the assembly specifies. On rated walls the fastener spacing is part of the listing rather than a rule of thumb, and second-layer joints are offset from the first.
Signs You Need Metal Stud Framing & Drywall
- A partition layout that has to be anchored into an old slab or structural masonry
- A timber or otherwise non-standard deck where partitions meet the structure above
- A floor visibly out of level across the length of a planned wall
- Casework, equipment or displays planned against a partition
- Drawings calling out a listed assembly by number rather than by description
- Existing partitions in the building cracking at their head or their base
How Metal Stud Framing & Drywall Works
- 1
Find Out What You Are Fastening Into
Before any track goes down, the substrate gets established at three places: the floor, the deck above, and the perimeter walls. A modern slab takes a routine anchor. An old concrete floor of unknown composition, a timber deck, or structural masonry each take something different, and a fastener suited to one is unreliable in another. This is not a detail that shows in a finished wall and it is the difference between track that stays put and track that works loose along its length. In converted buildings it is worth resolving before the price is agreed, not after the first anchor spins.
- 2

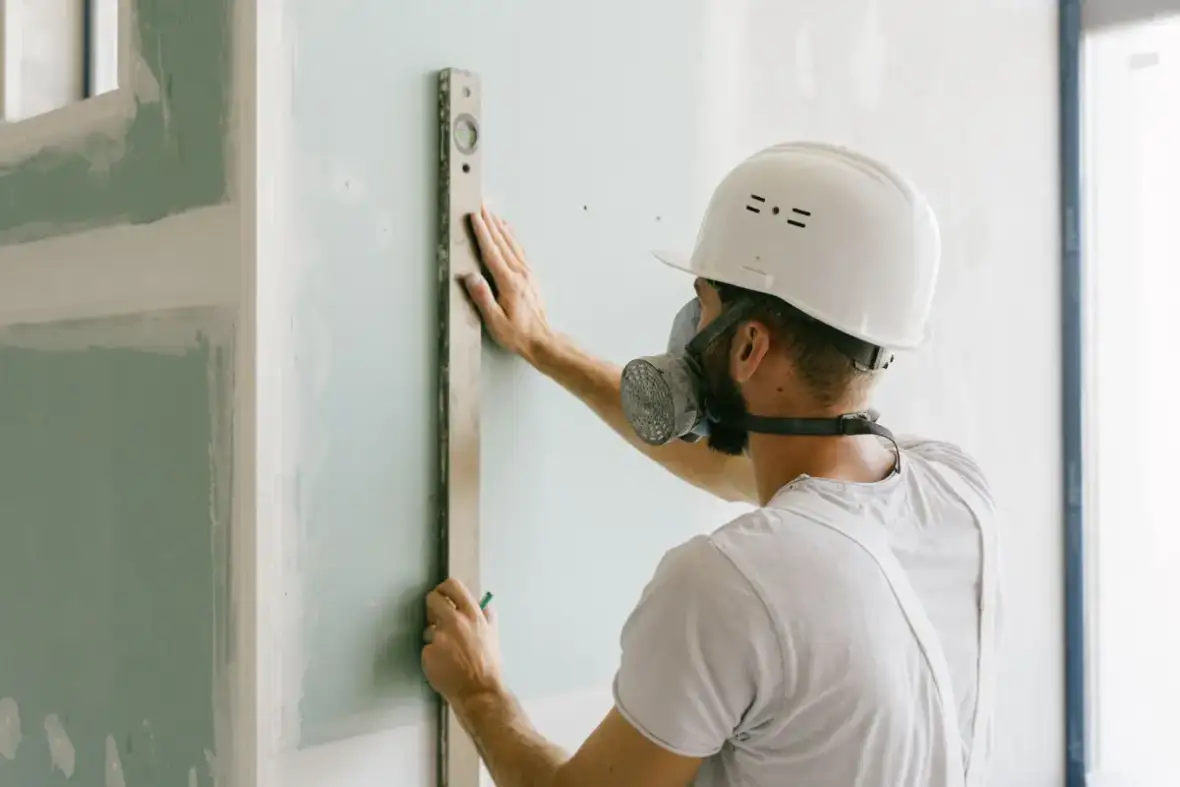

Lay Out Around a Building That Is Not Square or Level
Partition lines come off the drawings and then get reconciled with reality. In a converted floor plate the slab may fall an inch or more across the length of a wall, the perimeter masonry is rarely plumb, and columns or bracing land where a partition wanted to go. All of that is absorbed in layout and in stud lengths rather than discovered at the third stud. This is also when the head-of-wall approach gets fixed, because how a partition meets a heavy timber deck is a decision rather than a standard detail off a drawing.
- 3
Match the Steel to the Load, and Block for What Is Coming
Gauge follows what the wall carries rather than what is on the truck, confirmed in mils rather than taken from the gauge label, since twenty gauge covers both a genuine 33-mil structural stud and a substantially thinner drywall-grade product. Studs seat fully in track and are set plumb, because a stud out of plumb telegraphs through the finish and compound will not correct it. Openings get headers and jamb reinforcement sized for real use. Then blocking goes in against a written list, and tall walls get braced above the ceiling where nobody will ever look.
- 4

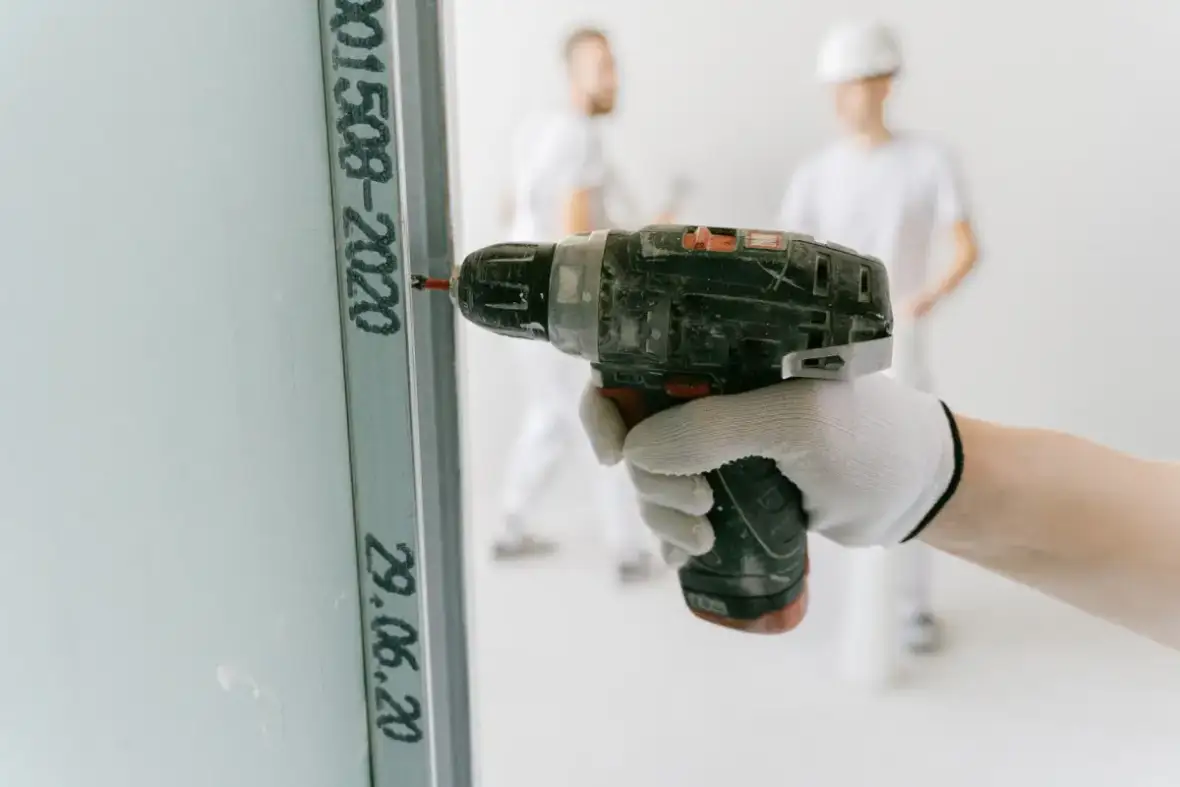

Board It Like Steel, Not Like Wood
Driving screws into steel is its own skill. Too fast and the screw strips the stud and spins with no grip; too slow and it breaks the paper face and loses most of its value. Either way the fastener looks fine and does nothing. Sheets are hung with joints staggered and off opening corners, run in the direction the assembly specifies, and fastened at the listed spacing rather than a habitual one. On rated walls the second layer offsets its joints from the first and every penetration is firestopped to the listed detail. Then finishing to the specified level.
What Does Metal Stud Framing Cost in Milwaukee, WI?
- Linear footage and wall height
- Base metal thickness required, since structural steel costs considerably more
- What the track has to be anchored into at floor, deck and perimeter
- How far out of level and out of plumb the existing structure is
- Whether the wall is rated or acoustically specified
- Head-of-wall detailing, particularly against non-standard structures
- Quantity and type of blocking required, and number of framed openings
| Service | Cost Per Sq. Ft. | Typical Job |
|---|---|---|
| New Drywall Installation | $1.50 – $3.00 per sq. ft. | $1,000 – $3,254 per project |
| Small Patch or Hole | $75 – $350 per patch | $300 – $500 for a contractor visit |
| Larger Wall Repair | $500 – $800+ per patch | Scales with how much comes out |
| Ceiling Repair | $297 – $472 per hole | $220 – $1,300 for the full ceiling |
| Water-Damaged Drywall | $500 – $2,500+ | Depends how far the moisture travelled |
| Texture Matching | $150 – $450 per patch | Runs 30 – 40% above a smooth finish |
Based on 2026 national cost-guide data from Angi, HomeGuide, and Homewyse. These guides price drywall work, and Milwaukee's older housing stock frequently isn't drywall — plaster repair, or a wall already layered with board over plaster, sits above these ranges because the method changes rather than just the square footage. Access in stairwells and occupied flats moves it too. You get a firm number after someone sees the job.
In a modern shell, metal stud framing prices close to linear footage. In a converted building it does not, and the difference is not padding. Anchoring into unknown substrates, absorbing an out-of-level floor across every wall, and resolving each termination against masonry or timber as its own detail all take time that does not appear on a plan. When bids on a conversion differ substantially, the question worth asking is what each one assumed about the building rather than about the labor rate.
What to Look for in a Milwaukee Metal Stud Framing Contractor
They Identify the Substrate Before Quoting
Old slabs, timber decks and structural masonry each need a different fastener. Finding that out when the first anchor spins is the expensive version.
They Quote in Mils
Gauge labels are used loosely enough that twenty gauge can mean two different studs. Naming the base metal thickness is how you know which one is arriving.
They Plan for an Out-of-Level Floor
A converted floor plate can fall an inch across one wall. Absorbing that in layout and stud lengths is the difference between a plumb wall and a visibly tapered one.
They Want the Mounting List in Writing
Blocking against a written list costs almost nothing during framing and cannot be added later without opening finished walls.
Residential & Commercial Metal Stud Framing & Drywall
Residential
Residential interior framing is overwhelmingly wood and is not this service. Steel does appear in houses occasionally — basement partitions in damp conditions, where its resistance to moisture and mold is a genuine advantage — and that use is covered on the basement drywall page.
Commercial
Metal stud framing is the default for commercial interior partitions and the required construction for most listed rated assemblies. In this market the work that separates competent from adequate is usually at the junctions: what the track is anchored into, how the head of wall meets a structure the listing never anticipated, and how an out-of-level floor is absorbed.
When Metal Stud Framing & Drywall Isn’t the Right Call
- Residential interior partitions, which are wood framed in nearly all cases.
- Projects where the gauge is being chosen on price without reference to what the wall carries. That decision surfaces the first time someone mounts something on it.
- Conversions where the substrate is unknown and the plan is to use whatever fastener is on the van. Track that works loose is not a finish problem, it is a wall problem.
- Rated assemblies to be framed approximately rather than to the listed detail. A rating is a property of the tested construction.
- Projects outside Milwaukee County and the neighboring Waukesha, Ozaukee and Washington County suburbs.
Frequently Asked Questions
- How do you anchor partition track in an old building?
- By finding out what is actually there first. An old concrete floor may be thinner, softer or differently reinforced than a modern slab, and the fastener that works in one is unreliable in the other. Overhead, a timber deck takes a completely different approach from steel or concrete. Perimeter conditions are usually structural masonry rather than framing. None of this is exotic — it is routine for anyone who works in these buildings — but it does mean fastener selection is a decision per condition rather than one choice for the whole job.
- Our drawings say 20 gauge. Is that a structural stud?
- Not necessarily, and it is worth pinning down before anything is ordered. Gauge is used loosely: twenty gauge is applied both to a genuine structural stud at 33 mils of base metal and to a lighter drywall-grade product at closer to 30 mils. They look similar on a pallet and perform differently under load. The reliable specification is mil thickness, and on any wall with a structural role or significant mounted weight it is worth confirming what is actually being supplied.
- The floor slopes. How does that affect the partitions?
- It has to be absorbed rather than ignored, and there are two ways to get it wrong. Running the track along the floor and cutting all studs the same length produces a wall whose top follows the slope, which reads as crooked against a level ceiling or window head. Holding the top level and letting the base gap produces a tapering shadow line at the floor. The workable answer is usually to hold the wall plumb and level, vary the stud lengths, and detail the base so the variation disappears behind trim.
- Can blocking be added after the wall is finished?
- Only by opening the wall — cutting finished board, adding backing, patching, retaping, matching texture and repainting, often in an occupied space. The whole exercise costs many times what the blocking would have during framing, and it leaves a repaired surface where an unbroken one used to be. This is why the mounting list gets collected in writing before the wall closes, including items that seem unlikely, since the cost of blocking something that never gets hung is close to nothing.
- Is steel framing better than wood for a commercial partition?
- For commercial interior work, yes, and not marginally. Steel is dimensionally stable, so it does not shrink or warp and pull joints apart. It is non-combustible, which matters directly in rated assemblies. It is consistent, so every stud is straight — which is worth more than usual in a building where nothing else is. And most listed commercial rated assemblies specify it, so the choice is often made for you by the code path rather than by preference.
- Does the framing affect the fire rating or just the board?
- The framing is part of it. A listed assembly specifies stud gauge and spacing along with board type, layer count, fastener pattern and termination details, and the rating applies to that whole tested construction. Changing the stud spacing or the gauge from what the listing calls for means the wall is no longer the assembly that was tested, regardless of the board on it. In a converted building the termination details are where this gets tested hardest, because the listing did not anticipate a timber deck.
Learn More
- Steel Framing Industry Association — technical resources on cold-formed steel framing gauges, spans and detailing
- UL Product iQ — listed fire-rated assembly database covering stud gauge, spacing and termination details
- Association of the Wall and Ceiling Industry — trade association guidance on steel framing and drywall practice
